Best Electronics Second Generation Upgraded / Improved ST Multi Sync adapter cable.

1.  13+ year proven Best original ST Multi Sync Adapter Cable Design, sold to hundreds and hundreds of Atari ST Users / Owners all over the World.  See world wide Atari ST user feed back comments on the original 1st Generation Best ST Multi Sync cable below.

2.  New Custom Made extruded wire harness with 2 fully molded in RF Video Interference Suppressing Torrids on the new wire harness, that eliminates the need for the two old style clamp on RF Torrids and the 13+ plastic tie wraps (used to keep the 3 separate 6 ft wire cords on the Best ST Multi cable from becoming a tingled wire mess) that were used on the 1st Generation Best ST Multi Sync adapter cable.  The new custom extruded wires (3 cable cords are molded / extruded into a 1 piece solid wire harness assembly) gives the 2nd Generation Best ST Multi sync adapter cable a much Cleaner and Improved look.

3.  The second generation Best ST Multi Sync cable is about 27% heavier than the original Best Multi sync ST adapter cable design, because of the Thicker / Beefier gauge internal wires used on the new Custom made extruded wire harness assembly for better reliability.

4.  Upgraded / Better Euro style split ring RCA Male ST sound out connector compared to the 1st Generation US style 4 prong RCA Male sound out RCA connector for better reliability.

5.  Like the 1st Generation Best ST Multi cable, all of the 2nd generation Best ST Multi sync cable connectors (except the ST Color / Mono switch assembly) are molded onto the wire harness for better strain relief and durability.

6.  Best ST Multi Sync adapter cable part number and Best Web site URL address silk screened onto the 2nd Generation extruded wire harness.

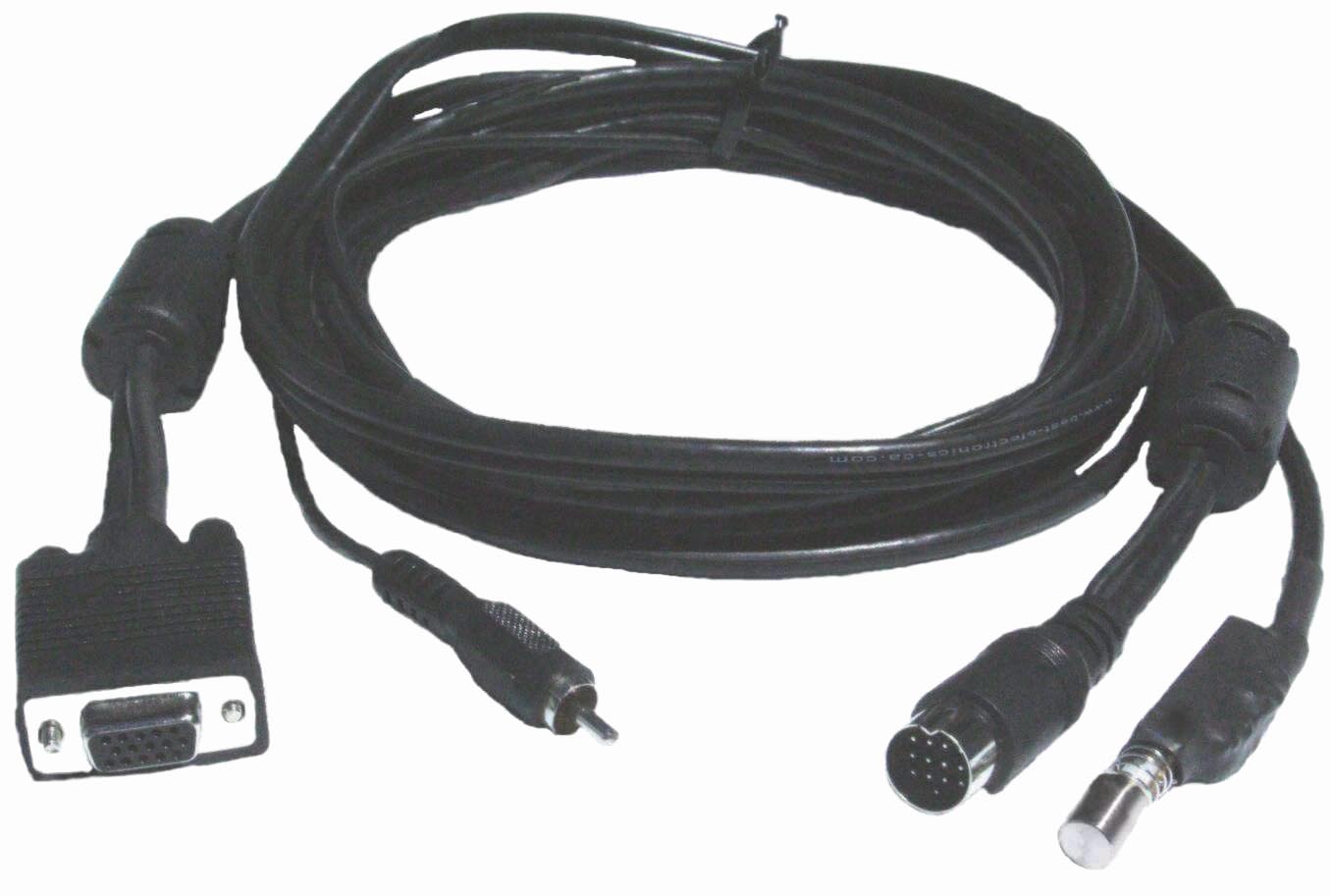

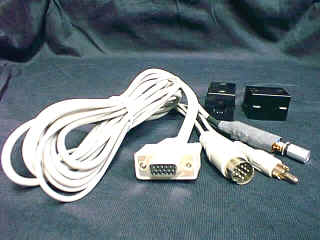

2nd Generation Upgraded / Improved / Heaver Best ST Multi Sync adapter cable left picture and original 1st Generation original Best ST Multi ST Adapter cable right picture.

Looking for An Atari ST Monitor or Atari adapter cable to use a VGA Tube or LCD / LED Monitor?  Find out how you can get 2 ST monitors in 1, using Best Electronics Featured product.

Most Atari ST owners do not know that there is a group of Multi Sync tube and LCD Monitors that will work on the Atari 520ST/ 520STFM/ 1040ST/ 1040STE/ Mega 1- 4 / Stacy / MegaSTE Atari Computers!  Why a Multi Sync Monitor on an Atari computer you ask? Here is a short list of reasons why you should consider using The Best Custom made ST Multi Sync monitor adapter cable (Custom Atari ST 13 Pin Male molded round connector to HD15 Female molded video connector) with a Multi Sync Monitor on your Atari ST computer:

CB102582-6 2nd  $54.95

CB103129 HD15 to HD15 Male to Male Gender changer $2.95

1. On Most Multi Sync Monitors (on the 2 Lists below) you will get Three Atari ST Monitor Screen Resolutions, Low color, Medium color and High Resolution Monochrome on the same monitor!

2. In most cases (but not all), depending on the Multi Sync Monitor screen size you will get a larger Monitor Display (than Stock Atari color ST Monitors) but usually not full screen size in Monochrome mode, with normal outside black border around the monochrome display, like the original Atari SM124 display but just a much larger viewable Monochrome display.

3. Dot Pitch (quality of the Display) on most of the Multi Sync Monitors is usually Better than the Stock Atari ST monitors.

Jan J. of Sweden  "Now I have tried the Cable" Best ST Multi Sync adapter cable "together with my Atari Mega4 + Megafile 30.  Works great ! and what a big screen !  Now I can start to make music again with Notator."

4. Using a standard Monitor switch box, you could even connect up a second PC based computer and have it work on the same Multi Sync Monitor.

5. Most of the Multi Sync Monitor brands and Models listed below have been around for a little while (also many people have been upgrading to a LCD displays), and can usually be picked up at Bargain Prices at Local Electronic Shops / PC dealers / Swap Meets / Electronic Surplus houses / Electronic Recycling Centers.

Alex O. of France  Purchased a Reconditioned Atari Stacy 4 and the Best ST Multi Sync adapter cable.  "Everything is working nicely and I was even able to use a cheap 32" LCD TV  for B&W with the cable and the needed HD15 gender changer.  I follow your advice ( turn off the Stacy LCD display ) and use the Best ST Multi Sync adapter cable for an external Stacy mono chrome display.  The external display is better and even excellent with brightness off for the Stacy screen anyway"

John D. of CA  "I hooked the Mega 2 to a 21 inch Superscan Pro 21 Hitachi monitor and Hi Rez works great.  I never thought I would see a Atari screen on a 21 Inch Monitor.  Neat cable"

6. Many of the Multi Sync Monitor Brands and Models listed below were shipped all around the world and Set up for each countries different Operating Voltages (110/220/240 Volt).  It is a lot cheaper cost wise, to ship the Best Multi Sync ST Monitor Adapter cable across the US or World Wide, than ship a complete ST Monitor.  Also there is less of a chance of a shipper damaging a cable assembly compared to a complete boxed heavy ST Monitor.

Atari Tech Tip:  Before you consider getting the Best ST Multi Sync adapter cable, double check your Multi Sync Monitor, LCD, TFT or Plasma display Cable end or input Video connector to make sure that it is a Male HD-15 connector,  so that will mate up with the Best ST Multi Sync adapter cable HD-15 Female output connector.  If you do have a Female HD-15 connector on your video display or video display cable, you will need a HD-15 to HD-15 Male to Male gender changer which are in stock.

Bill D. of NJ  "I received your cable today."  One of Bests ST Multi Sync adapter cable to Multi Sync Tube and LCD Monitors, to replace the standard Atari made ST Monitors   "I'm very excited for a few reasons, but first I wanted to thank you very much for your speedy ordering and delivery process.  But I'm doubly excited, because when I connected this to my Coby LCD TV-TF1514 color TV with VGA inputs, it appears it can natively handle ALL the ST resolutions WITHOUT a converter box!  I just plugged the cable in, and figured I could at least test the monochrome part of it, since I know that is basically at the same scan rate as VGA, but to my surprise, I saw color in ST Medium mode, rather than monochrome ST High mode. I tested all three resolutions and they all work!"

7.  Atari ST Midi users, looking for Mono chrome replacement Monitor for your Atari SM124 or Atari SM147 dying Monitor?  Most of the current Modern Multi Sync tube and LCD / LED  Monitors on the Market today will work in ST Mono chrome mode only.  Just double check your New Multi Sync Monitor Owners Manual (can also be found on the Internet with a simple search) sync range (typical modern Multi Sync monitor range: Horizontal Frequency 20 - 36 kHz, Typical Vertical range: 50 - 90 Hz)  The ST Mono chrome Display requirements:  35.7 kHz Horizontal and 71.2 Hz Vertical Frequency's.

Atari Tech Tip:   When you 1st connect up your new Best Multi Sync ST adapter cable to your Tube / LCD / LED or Plasma larger display / TV to get an Atari larger Monochrome display, it maybe too dark, too light, or have vertical light and dark lines or strips on it depending on what was factory presets were for Hi Res settings on your Monitor / TV.  You can usually correct these ST Hi Res minor display problems by using your display auto correct / adjust / update function.  But in a few cases you will get very close to the normal ST Mono chrome display you are use to,  you may still have to go into your Monitor / Display set up menu settings and make fine adjustments to your Brightness, Contrast, Clock and Clock phase settings to get a perfect ST Mono chrome display and then save those new display / monitor settings.

Gilbert H. of Belgium  "Just got hands on the adapter cable,"  Best ST Multi Sync / LCD monitor adapter cable  "it works great with a compatible monitor !"

8.  Because most Multi Sync Monitors on the market do not have Audio in and out features, the Best ST Multi Sync monitor adapter cable, includes one RCA male audio out cable, so you can connect this ST audio out cable to an amplified Speaker to hear the normal ST Key clicks and other normal ST program sounds.

9.  Compared to the stock Atari made ST SC1224 Color, SM124 Mono Chrome or SM144 Mono Chrome monitors with their very tiny 12 to 14 inch hard to see Diagonal screen size, the Best ST Multi sync adapter cable will allow you to go to much larger 19 to 40+ inch screen displays.

Mark W. of the UK    "Thanks very much for the cable, it works a charm."  Best ST Multi Sync Adapter cable.  Follow up question:   Do you have a similar cable, but with audio break out?

Answer:  Already built into the Best ST Multi Sync adapter cable.

Follow up Comment:  "It was great before I realized it had built in audio out. Now I'm over the moon."

10.  If you use the Ambery Scaler box below with the Best ST Multi Sync adapter cable, the Ambery Scaler box will Sync up the Atari ST Low and Medium Custom Color Video non standard Display signals, so you can use most current larger LCD, LED and Plasma screens.  The Ambery Scaler box will not pass thru the 71.2 Hz Vertical Frequency's required for ST Mono Chrome display.  In most cases to get the ST Mono Chrome display on the same LCD display you are using, you will have to connect the Best ST Multi Sync Adapter cable directly (by passing the Ambery Scaler box) to your VGA tube, LCD / LED display.  If you do want to switch back and forth between ST Color and Mono Chrome Displays on the same LCD display with the Ambery Scaler box, you can get a VGA Switch box with extra VGA cables, to switch in and out the Ambery Scaler box to your Tube, LCD / LED display.  Remember the push button switch on the Best Multi Sync adapter cable must be in the top position for a Mono Chrome display and bottom position for ST Color Display.

Here is the current list of Multi Sync Monitors that will work with the Best Electronics CB102582-6 Custom Made Multi Sync Monitor adapter cable.  If by chance you Do Not find a Multi Sync Monitor on the List below you can use or find locally, check the product information below on the Required Multi Sync Monitor Electrical Specifications.  If you find another brand or Model that will work on Atari ST computers please let us know and we will add it to the list.

New Update.  Now you can use just about any of the newer Larger LCD / TFT / Plasma Monitors / LCD TV's / Projection TV's or the largest Tube type of Multi Sync Monitors you can find using the Best ST Multi Sync adapter cable and the Ambery RGB to VGA Scaler Box (around $92 plus shipping).  The Ambery Video Scaler box, converts the older Atari ST 15Khz (ST Color modes) Video Signals to the Newer LCD VGA Standards.  All you need to due to get all three Atari ST Video Resolutions (Low Color, Medium Color and Monochrome ST displays) on your Large LCD display is connect up the Best ST Multi Sync adapter cable to your ST Computer, then connect up the Best Multi Sync cable HD15 connector up to the Ambery AV-1 Scaler box (HD15 Male to Male Gender changer required) in port (plug in the Scaler box Power supply) and a third Optional HD 15 VGA cable from the AV-1 Scaler box out port to your LCD / TFT Display input connector or use the Ambery AV-1 Scaler Box supplied HD15 to 3 RCA Male Component Video connectors cable.  This Ambery Video Scaler box information is provided by Best Electronics for its ST owners.   We do not stock this item, but you can order it direct from the Ambery web site.  See information below.

Atari Tech Tip:  If you do get the Ambery Scaler box and want to use it with the Best Multi ST Adapter cable (HD15 Female connector out) with it, you will need at least one HD-15 Male to Male Gender changer to connect up to the Ambery VGA female input connector.  You may need a second HD-15 Male to Male gender changer if your output display has a female HD-15 input connector or cable end.  We do have HD-15 to HD-15 Male to Male gender changers in stock.

RGB to VGA + Component RGB to VGA Converter Scaler

For more information on the Video Scaler Box and to order directly from Ambery Web site, click on the above picture.

Mark G. of Australia   "I've received the Ambery device today and just wanted to send through some feedback that coupled with Best Monitor Cable,"  Best ST Multi Sync adapter cable "it's a fantastic setup.  The picture is crystal clear and if you set the medium rez mode to widescreen it looks much better than on a original monitor!"

The information on the Ambery Video Scaler box, was supplied to Best Electronics by Neil T., a very Happy Best ST Multi Sync adapter cable owner with his ST Computer now connected to a 24 Inch LCD Color Display

 The Following 1st list is from the Best Electronics Rev. 10 Catalog page 189, "Best Tech Tips".

Model Manufacturer

kHz Horiz.   Frequency

Hz Vert. Frequency

Acer 15P

15.0 - 70.0

45.0 - 90.0

Acer 7015

15.0 - 36.0

45.0 - 90.0

AOC CM-324

15.0 - 37.0

50.0 - 90.0

AOC CM-326

15.0 - 38.0

50.0 - 90.0

Carroll Touch CT1381A

15.7 - 38.0

45.0 - 90.0

Compeq CT-1458

15.0 - 48.0

47.0 - 100.0

Compeq CT-1958

15.0 - 51.0

47.0 - 100.0

Conrac 7214

15.0 - 37.5

48.0 - 90.0

Conrac 7250

15.5 - 37.0

47.0 - 80.0

Cordata CMC-1500BF

15.5 - 39.0

50.0 - 90.0

Eizo 9060S

15.5 - 38.5

50.0 - 90.0

Fora MON-7C5

15.0 - 36.0

45.0 - 90.0

Idek/Iiyama MF-5014A

15.5 - 38.5

50.0 - 90.0

Idek/Iiyama MF-5015A

15.5 - 38.5

50.0 - 90.0

KFC Computek CH-14

15.0 - 36.0

50.0 - 86.0

Link Computer CE-8

15.5 - 38.0

50.0 - 90.0

MAG Technology PMV-14AC/plus

15.0 - 36.0

45.0 - 90.0

MAG Technology PMV-1531

15.0 - 38.0

45.0 - 90.0

Microvitec 1020/SP

15.0 - 36.5

45.0 - 100.0

Microvitec 1020LP

15.0 - 36.5

45.0 - 100.0

Microvitec 2012/LP

15.0 - 40.0

45.0 - 100.0

Microvitec 2019/SP

15.0 - 38.0

45.0 - 100.0

Microvitec 604/FST

15.0 - 36.5

45.0 - 100.0

Microvitec 704/FST

15.0 - 36.5

45.0 - 100.0

Mitsubishi Diamond Pro 29 (XC2930)

15.0 - 82.0

40.0 - 120.0

Mitsubishi Diamond Scan 20M (HC3925)

15.7 - 38.0

45.0 - 90.0

Mitsubishi LVP-X300 Projector (LVP-X300)

15.0 - 91.0

50.0 - 85.0

Mitsubishi MegaView 29 (AM2752)

15.0 - 39.0

45.0 - 100.0

Mitsubishi MegaView 37 Plus (XC3717)

15.0 - 61.0

40.0 - 120.0

Mitsubishi MegaView 37 (XC3716)

15.0 - 39.5

40.0 - 120.0

Mitsubishi MegaView Pro 37 (XC3730)

15.0 - 85.0

40.0 - 120.0

Mitsubishi The Big Easy 1281 (VS1281)

15.0 - 103.0

40.0 - 150.0

Mitsubishi VS1280 Projector

15.0 - 100.0

40.0 - 150.0

Modgraph MG-3200

15.0 - 35.0

47.0 - 80.0

Monitronix MX-200MC

15.0 - 75.0

40.0 - 120.0

Nanao 9060S

15.5 - 38.5

50.0 - 90.0

NEC Multi Sync 2A - 2V - 3D - 3Ds

15.5 - 38.0

50.0 - 90.0

NEC Multi Sync LT80

15.0 - 60.0

50.0 - 85.0

NEC Multi Sync MT1000

15.0 - 80.0

50.0 - 85.0

NEC Multi Sync MT810

15.0 - 60.0

50.0 - 85.0

Princeton MAX-15

15.0 - 36.0

45.0 - 120.0

Princeton MultiView

15.0 - 60.0

45.0 - 90.0

Princeton MultiView II

15.0 - 70.0

45.0 - 90.0

Samsung CT-4581

15.0 - 38.0

47.0 - 73.0

Samsung MF-4771

15.0 - 38.0

48.0 - 72.0

Tatung MM-1295

15.0 - 35.0

50.0 - 70.0

TTX 3436AG

15.0 - 38.0

50.0 - 90.0

TVM MG-11

15.0 - 38.0

47.0 - 75.0

TVM SuperSync 3+

15.0 - 38.0

47.0 - 90.0

ViewSonic PJ800

15.75 - 69.0

50.0 - 75.0

ViewSonic PJL1005

15.0 - 72.0

43.0 - 120.0



Model Manufacturer



Size   (inch) kHz Horiz.   Frequency Hz Vert. Frequency
7015 ACER ? ? ?
AML-1402 Adara Technology 14 15-36 45-90
BenQ G2420HD 24 Inch Color LCD w/ all 3 ST Monitor modes 24 ? ?
MS-8431 Amazing Tech. 14 15-36 ?
CM-324 AOC International   14 15-36 50-90
CM-324H/M AOC International 14 15-36 50-90
CM-326 AOC International  14 15-38 50-90
Coby TV-TF1514 LCD Color TV  (New Addition to list) 15 ? ?
Auto-Trak 714 Conrac Display   13 15.5-37 45-80
Auto-Trak 9250 Conrac Display 13 15-37.5 48-90
Model 7126S Conrac Display 26 15-32 48-75
Model 7211 Conrac Display  13 15-37.5 47-80
Model 7211 Conrac Display 19  15-37.5 47-80
Model 7241 Conrac Display   19 15-37 47-80
Model 9214 Conrac Display  13 15-38 50-80
Multiscan 3436 CTX International 14  15-38 50-90
TSM-1431 Darius Technology 14 15.5-39 50-90
ECM 1410 Electrohome, Ltd.   14 15-40 45-90
ECM 2010 Electrohome, Ltd.  20 15-38 45-120
Eversync Color Everex Systems 14 15.5-35 50-70
FMS Falco Data  14 15-38 47-90
MTS-9608S Forefront Technology 14 15-38 50-90
TY-1411 Golden Dragon 14 15.5-30 50-120
HP 1755 LCD Display  (New Addition to list) 17 ? ?
HP 1955 LCD Display  (New Addition to list) 19 ? ?
Idek MF-5017 IDEK/Iiyama North Amer. 17 15-40 50-90
Idek MF-5021 IDEK/Iiyama North Amer. 21 15.5-38 50-90
C21LV-65MAX Image Systems Corp. 21 15-65 55-90
C24LV-65MAX Image Systems Corp. 24 15-65 55-90
CM-1403 Intra Electronics USA 14 15-38 40-100
GD-H4220US JVC Information 19 15-37 45-87
CMON M Leading Edge 14 15.75-39 50-90
MagicVIEW 20 Mac 20 15.75-36 50-100
Model 2014/LP Microvitec 14 15-40 45-100
Model 2020 Microvitec 20 15-38 ?
Model 710MH Mitsuba Corp.   14 15-38 50-90
Diamond Pro 26M Mitsubishi Electronics 25 15-38 45-90
HC-3505SK Mitsubishi Electronics 26 15.7-38 45-90
XC-3315C Mitsubishi Electronics 33 15-38 40-120
XC-3715C Mitsubishi Electronics 37 15-36 45-120
AM-2752A Mitsubishi Electronics 27 15.6-36 45-90
AM-3151A Mitsubishi Electronics 31 15.6-36 45-90
AM-3501R Mitsubishi Electronics 35 15-35.5 45-70
MG-3430 Modgraph 9 15-35 50-70
DM-2710 NEC Technologies   27 15-38 40-100
NEC 2 NEC Technologies ? ? ?
NEC 3D NEC Technologies ? ? ?
NEC XV29 (XV2940)(New Addition to list) 29 ? ?
PanaSync C1391 Panasonic Communication 13 15.5-36 40-80
Ultra 1200 Princeton Graphic Syst. 12 15-38 45-120
Ultra 1400 Princeton Graphic Syst.  14 15-38 45-120
Ultra 1600 Princeton Graphic Syst.  16 15-38 45-120
CN4551 Samsung ? ? ?
AlphaScan Sampo Corp. of America   14 15.75-36 50-87
CE-8 Sceptre Technologies   14 15-38 50-90
CM-3 Sceptre Technologies   14 15.5-36 50-70
CPD-1302 SONY Corporation of Am.   13 15.75-36 50-100
GVM-1310 SONY Corporation of Am.   13 15.75-36 50-100
GVM-2020 SONY Corporation of Am.  20 15.75-36 50-100
Tuff/CRT Talon Technology Corp. 14 15-35 47-73
Omniscan CM-1495H Tatung Co. of America 14   15-37 40-120
MultiVision 770+ TAXAN America 14 15-37 50-90
MediaScan 3+ TVM Professional Monitor 14 15-38 46-100
TM-5414 TW Casper Corp. 14  15.5-35 50-70
MM20E45 Toshiba ? ? ?
